How to copy a large file from SFTP server to AWS S3 using Lambda?

A guide to copying a large file from SFTP server to AWS S3 using Lambda.

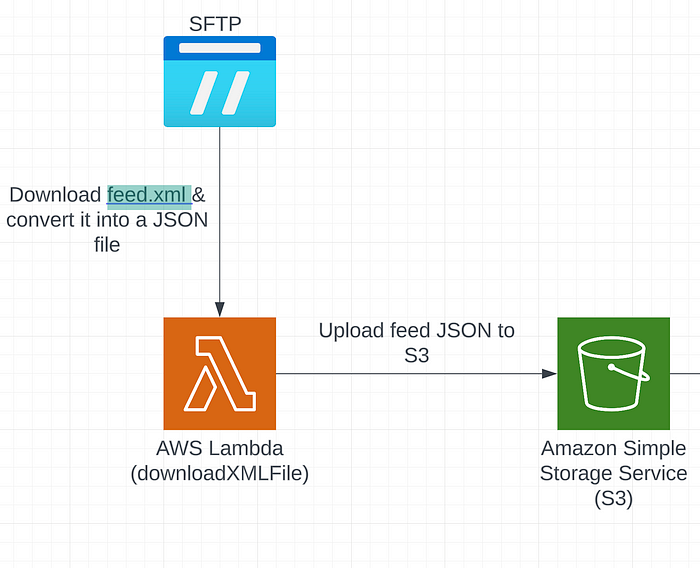

Recently, I had to help a friend automate the process of moving a large file from an sftp location to s3 for further processing. It was a large(ish) XML file, which needed to be downloaded and its data was meant to be stored in a different data store and then archived for future reference.

The overall process of doing so is quite simple, but it can be a little tricky when it comes to handling a large file on Lambda. In this post, I will go through the process I followed and things you should look out for when you are building a service like this.


I used the Serverless framework for writing and deploying my lambda function. My function definition in serverless.ts file looks like this -

functions: {
    downloadXMLFile: {
      handler: "handler.downloadXMLFile",
      timeout: 900,
      memorySize: 5120,
      ephemeralStorageSize: 1024,
      events: [
        {
          http: {
            method: 'get',
            path: 'downloadXMLFile',
          },
        }
      ]
    }
  }

The function downloadXMLFile uses ssh2-sftp-client (https://www.npmjs.com/package/ssh2-sftp-client) package to make a connection with the sftp server and download the file. I also made use of /tmp folder in a lambda function to temporarily store the file before converting it into a JSON object and then uploading them both to an s3 bucket.

import { parseString } from 'xml2js';
import { S3 } from "aws-sdk";
import ClientFtp from 'ssh2-sftp-client';
import fs from "fs";

const s3 = new S3({
  accessKeyId: process.env.AWS_ACCESS_KEY,
  secretAccessKey: process.env.AWS_SECRET_ACCESS_KEY
});

export const downloadXMLFile: Handler = async (_event: APIGatewayEvent) => {
  try {

    const d = new Date();
    const today = `${d.getDate()}-${d.getMonth()+1}-${d.getFullYear()}`
    const sftp = new ClientFtp();

    return sftp
      .connect({
        host: process.env.SFTP_HOST,
        username: process.env.SFTP_USER,
        privateKey: sftpSSHKey,
      })
      .then(async () => {
        await sftp.fastGet("/upload/feed.xml", "/tmp/feed.xml");
        const xmlData = fs.readFileSync("/tmp/feed.xml", "utf-8");
        const jsonData = await parseXml(xmlData);

        await uploadtoS3({
          Bucket: process.env.FEED_BUCKET,
          Body: JSON.stringify(jsonData),
          ContentType: "application/json",
          Key: `${today}/feed.json`,
        });

        await uploadtoS3({
          Bucket: process.env.FEED_BUCKET,
          Body: xmlData.toString(),
          ContentType: "application/xml",
          Key: `${today}/feed.xml`,
        });

        return formatJSONResponse({
          message: "File downloaded and transformed successfully!",
        });
      })
      .catch((err) => {
        console.log("Catch Error: ", err);
        throw new Error(err);
      });

  } catch (error) {
    console.log(error);
    return internalServerError(error);
  }

}

export async function parseXml (xmlString: string) : Promise<any> {
  return await new Promise((resolve, reject) => parseString(xmlString, (err, jsonData) => {
    if (err) {
      reject(err);
    }
    resolve(jsonData);
  }));
}

export async function uploadtoS3(s3Data: S3.PutObjectRequest) {
  console.info("---- UPLODAING TO S3", s3Data.Bucket, s3Data.Key);

  try {
    return await s3.upload(s3Data).promise();
  } catch (error) {
    console.log(error);
    return error;
  }
}

Here, I am first creating a connecting with the said sftp server and then using its fastGet function to download the file from a particular path on that server. Once, I have the copy, I temporarily store it on Lambda’s tmp folder. Note, that there is a restriction on the size of file you can store here (up to 10GB — https://aws.amazon.com/blogs/aws/aws-lambda-now-supports-up-to-10-gb-ephemeral-storage/)

Once, I have the file in memory, I make use of the xml2js package (https://www.npmjs.com/package/xml2js) to convert XML data into JSON.

It works very well locally, but when you are deploying it on AWS, you have to tune it a little bit. The file that I was downloading was just under 0.5 GB, but I still had to increase the memory size of function to 5120 mb. Both, memorySize & ephemeralStorageSize can be configured in serverless.ts file (see above code snippet) or manually in the lambda function like this -

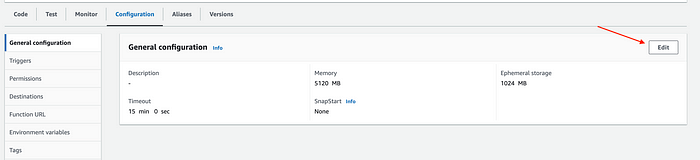

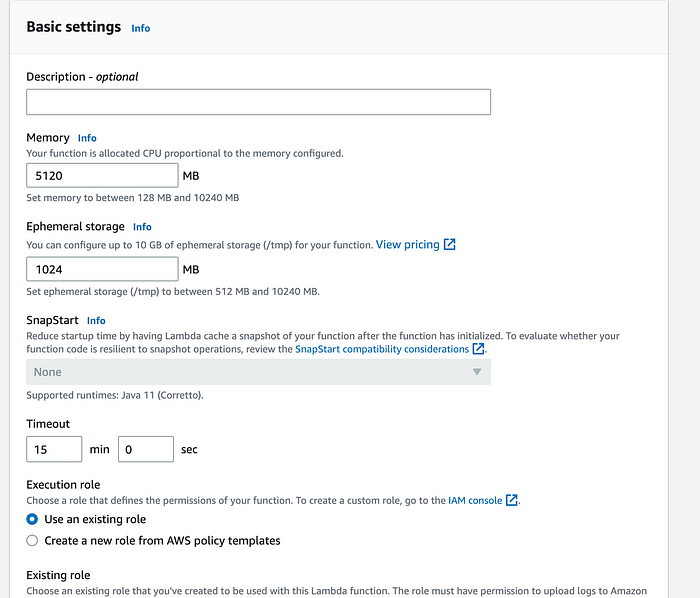

Lambda configuration — memorySize setting:

As I said at the start, its quite simple, you just need to figure out the right setting for your memory. Remember, it will cost you more to run a lambda on larger memory size and storages (https://aws.amazon.com/lambda/pricing/).
